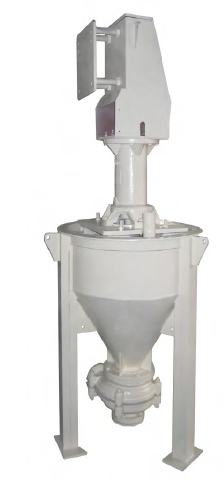

Froth pump

GAF design features

Bearing assembly- Bearing assembly of GAF series is the same with that of SV , SVR series . Bearing housing is
installed with motor frame base or supporting plate ,i.e.pump and moto are connected either directly with
couping or through pulley and belt . Pulleys can be exchanged conveniently to adjust the pump rotating
speed to satisfy the varying operating condition.Feeding tank- Feeding tank can be steel,stainless steel
or coated with rubber with overflow box and tangential inlet .The former can transmit the excessive incoming
slurry back to its pit, while the latter will allow the slurry quickly get into the pump body and make part of the
foams disappear. Double casings structure the pump head .Wetted parts are metal lined, rubber lined or of other
non-metallic material according to the different slurries.

GAF product feature

GAF series forth pumps are GX newly designed & developed products based on the advanced technology from
home and abroad . Being popularized and promoted ; now they are widely used in the metallurgical industrial ,
mining sector , coal ore and chemical engineering to handle abrasive and corrosive slurries with forth. When
operated , GAF pumps can effectively eliminate foam and forth in slurry and will also function properly even with
inadequate feeding slurry , thus making them the ideal choice for delivering foam slurries, esp, in flotation process.
